Precision and efficiency are the only things in industrial manufacturing. Cutting tubes and pipes with high precision is done to perfection in a Three-Chuck Semi-Automatic Tube Cutting Machine. Combined with features of a semi-automated machine and laser cutting machine facility, this is an unbeatable performance in metalworking.
Whatever your background is, whether from the auto, aerospace, or construction industry, having an idea of how this machine works and what it can do for you can enable you to streamline your production process even more. In this guide, we will guide you through the features, advantages, and applications of the Semi-automatic laser cutting machine, with special reference to the three-chuck setup.
What does a Three-Chuck Semi-Automatic Tube Cutting Machine do?

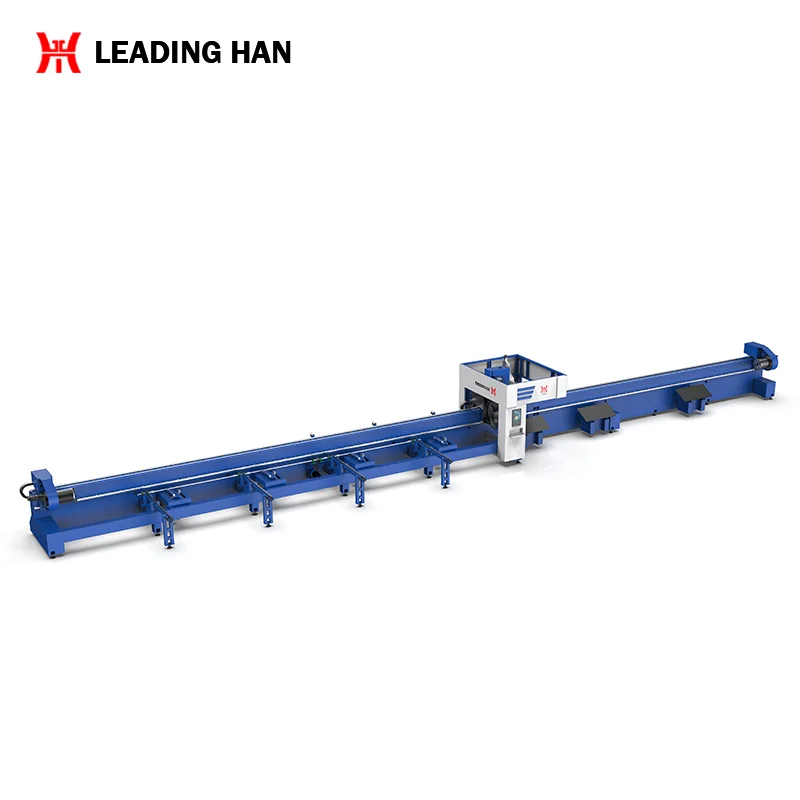

A Three-Chuck Semi-Automatic Tube Cutting Machine is a very precise cutting machine that cuts metal pipes and tubes. It is unique from other cutting machines in that it uses a mechanism of a laser cutting machine that yields burr-free cuts with close tolerances.
The “three-chuck” system refers to the three clamping units that strongly hold the tube while cutting. It reduces vibration and supports the cut, producing cleaner and more accurate cuts.
Major Features:
- Precision Laser Cutting: High-end laser technology to give accurate cuts.
- Semi-Automatic: Reduce man-hours but keep control of cutting processes.
- Three-Chuck System: Provides stability to give quality cuts consistently.
- Multi-Material Cutting: Stainless steel, aluminum, copper, and most metals.
- Easy-to-use Interface: Intuitive controls for efficient workflow.
How Does a 3-Chuck Semi-Automatic Laser Tube Cutting Machine Operate
A 3-chuck semi-automatic laser cutting machine operates with the help of a mechanical clamping system and a high-precision laser. The step-by-step process by which it operates is as follows:
- Material Loading – The machine operator loads the metal pipe or tube onto the feed system. The three-chuck machine clamps the material firmly to ensure no slippage during cutting.
- Laser Alignment – An intense beam of concentrated laser light is directed to the work, CNC-positioned for accurate alignment.
- Precision Cutting – The material gets vaporized or melted along the pre-programmed track, with clean edges and burr-free.
- Automatic Ejection – The cut part is ejected automatically during cutting and the next one gets fed by the machine for uninterrupted operation.
This reduces human fallibility but makes a rate increase feasible—machines with 60 meters a minute cutting capacity, subject to material thickness, are available.
Key Advantages of a Three-Chuck Semi-Automatic Tube Cutting Machine
1. Improved Stability & Accuracy
In comparison to double or single-chuck arrangements, 3-Chuck provides a stiffer grip, absorbing less vibration and machining more precisely. This is especially advantageous in high-accuracy applications like manufacturing medical devices with tolerances down to ±0.1mm.
2. Increased Productivity
By half-automating the clamping and feeding process, the Semi-automatic laser cutting machine reduces downtime between cuts. Factories are able to produce up to 40% more than manual processes.
3. Material Handling Flexibility
The machine is able to cut different materials such as:
Stainless steel, aluminum, carbon steel, copper & brass tubes.
It also has adjustable power levels and thicknesses of 0.5mm to 12mm, making it appropriate for diversified industrial applications.
4. Reduced Labor Costs
Since there is less control required from the operator for the machine, the company is able to shift manpower to other beneficial tasks. As an illustration of one German plant, there was a 30% reduction in labor cost after installing a Three-Chuck Semi-Automatic Tube Cutting Machine.
5. Less Energy Consumption & Maintenance
Laser cutting machines developed later have power-saving technology that consumes up to 20% less energy than traditional CO₂ lasers. Semi-automatic design saves wear and tear, leading to better service life.
Conclusion
3-Chuck Semi-Automatic Laser Cutting Machine is a leap in pipe and tube cutting technology. Its accuracy, speed, and automation are a machine to cut pipes and tubes in their operations.
Major notable points:
- Three-Chuck clamping keeps stable, error-free.
- Semi-automatic raises the machine productivity and reduces the labor cost.
- Flexible material handling accommodates diverse metals and thicknesses.
For businesses that aim to take their metal fabrication business to the next level, a three-chuck system Semi-automatic laser cutting machine is an investment that will show returns in the years to come.
With such systems in your shop, you can make quicker turnarounds, better-quality cuts, and a competitive edge.
Do you have a particular cutting application for which you’d like to get a tailored recommendation? Call us today to talk to an expert!
